JYOTI-222-FD WATER WHITE FAST DRYING VARNISH
⇒ JYOTI-222-FD is an Air-drying Insulating varnish based on phenolic resin. It is fast air drying and useful for Thermal Class B (130o C). It is used as finishing varnish and impregnating varnish to protect Electrical machines and appliances against moisture and chemicals.
⇒ The elastic varnish film is characterized by very good mechanical properties such as hardness, flexibility, penetration, Adhesion and Bonding strength. The cured film is resistance to moisture, dilute acids, alkalis, chemicals like benzene & toluene oils and tropical Climate from OoC to 55oC. It has good dielectric behavior and dielectric strength.
USES:-
JYOTI-222-FD is used as a finishing, impregnating & coating varnish for stares, Transformer, electric motors, transformer oil tanks, synthetic resins, stamping stacks Bonded Phenolic laminates circuit boards. JYOTI-222-FDis used to protect against chemicals & moisture to above electrical appliances, Uses in Idol Murti, wood coating,SS Coating. MS coating & many more uses.
SPECIFICATION:-
| Colour & Appearance | Water-White Liquid (Transparent) | ||
| Viscosity at 23°C | DIN 53211/CUP4 | Sec. | 25-35 |
| Solids contents | 1.5 gm/130°C/2 h | % | 45+- 1 48+-1 |
| Density at 23°C | ISO 1675 | g/ml | NA |
| Flashpoint | (Closed cup) | °C | 38 |
| Storage life | When stored in the original Sealed Container at R.T | Month | 12 |
Drying Properties at room temperature (25 oC - 35 oC)
| Surface Dry time | Min. | 30 typical |
| Track free time | hour | 1 |
| Hard Dry time | hour | 24 |
Note:- The cured Varnish film properties are achieved after 24 hours only.
CURING SCHEDULE:-
8 to 10 hours at room temp (25°C-35°C) or 1-2 hours at room temperature followed by 4 to 6 hours at 80-100°C
CHARACTERISTIC OF THE CURED VARNISH FILM:
Specimen curing:- 48 hours at room temperature for each coat.
Test according to IEC 464-II/IS10026-II-1982
| Water absorption | At 25 oC | % | 2.5 |
| Flexibility (mandrel test) | 3 mm mandrel | Nocracking | |
| Tracking Index | IEC 112 no. of drops | At 200v | > 200 |
| Volume resistively | At RT (500 VDC) After 168h water- | ohm.cm. ohm.cm. | 1015 1015 |
| Dielectric loss factor | At RT (30v/1 KHZ) At 120°C | 0.018 0.084 | |
| Dielectric Strength | At RT After 24h water Immersion at RT | kv/mm kv/mm | 115 100 |
PACKING:-

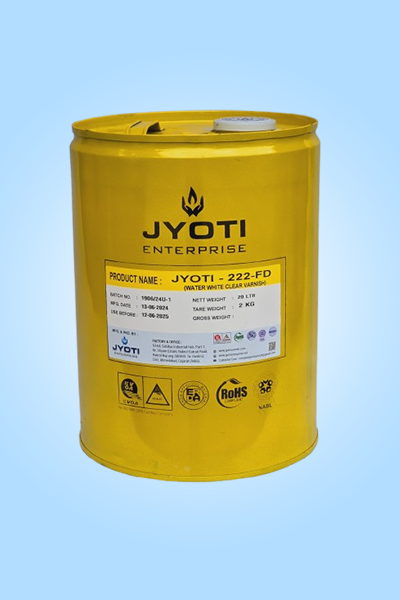

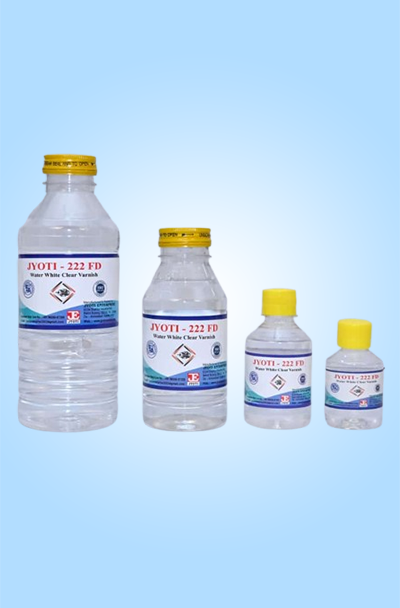

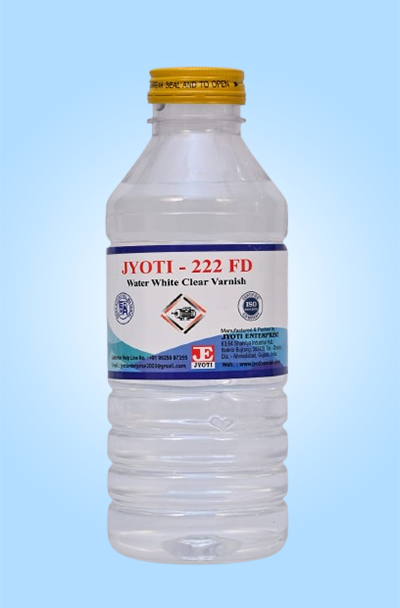

JYOTI-222-FD: 200 ml x 75 bottles, 500 ml x 30 bottles, 1 L x 15 bottles & 5 L x 4 in PET bottles in one corrugated box. 20 L & 200 L in M.S.containers.
NOTICE:- The above information is based on the result of experimental work in our laboratory and is correct to be best of our knowledge. No liability is accepted by us for any damage, injury or loss resulting from the use of information.
